Aluminium channel profiles丨aluminium extrusion channel profiles

Aluminium channel profiles are aluminum profiles whose cross section is slotted. Most of these cross-section shapes are U and C channels.

Share:
Product Details

Aluminium channel profiles are aluminum profiles whose cross section is slotted. Most of these cross-section shapes are U-shaped and C-shaped grooves. There are also many other shapes. Channel aluminum profiles are used in a wide range of applications, mainly for mounting fixings, edge protection and truck compartment frames.

What is aluminium channel profiles?

Retop can produce aluminum profiles with various cross-sections, the most basic of which are U-channel, T-groove and V-shaped aluminum profiles. They belong to a kind of basic aluminum profiles. The aluminium channel profiles we produce are lightweight, corrosion-resistant and wear-resistant. In addition to the common shapes, we can also produce F, H, I and Z shapes. Different shapes of slotted aluminum profiles can help you solve various installation applications. We welcome your inquiries at any time!

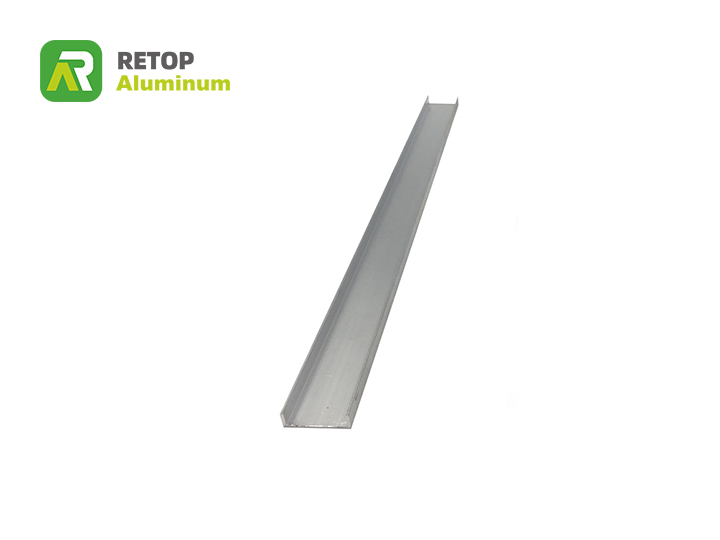

aluminum extrusion channel profiles
aluminum extrusion channel profiles

Aluminum extrusion channel profiles types and applications

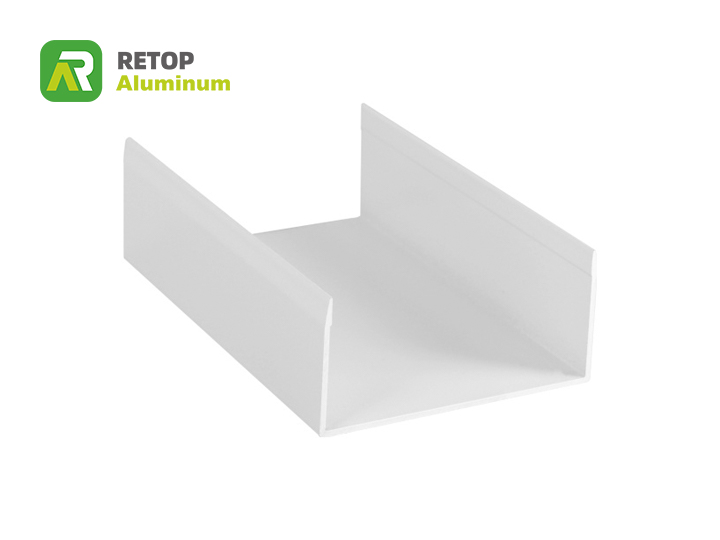

  1. U-shaped aluminium channel profiles: have two parallel edges and a bottom that connects them. Usually used for edge protection, fixing and assembly.
  2. C-Slot Aluminum Profiles: Usually used for clamping, electronic equipment and electrical engineering.
  3. T-Slot aluminum profile: The cross-section shape of this aluminum profile is in the shape of “T”. It usually has one or more longitudinal channels for mounting bolts, nuts and other accessories to build structures or support systems.
  4. V-Groove aluminum profiles: V-groove aluminum profiles have “V” shaped grooves and are often used to achieve smooth and precise linear movement. They are commonly used in sliding systems and guide rails.
  5. C-Groove aluminum sections: C-groove aluminum profiles have “C” shaped grooves and are commonly used to create jigs, fixtures and fixtures.
  6. I-channel aluminum profiles: I-channel aluminum profiles have an “I” shaped channel and are usually used to build frame structures such as workbenches and brackets.
  7. H-groove aluminum extrusions: H-groove aluminum profiles usually have two side-by-side T-grooves, which are used to increase the stability and load-bearing capacity of the structure.

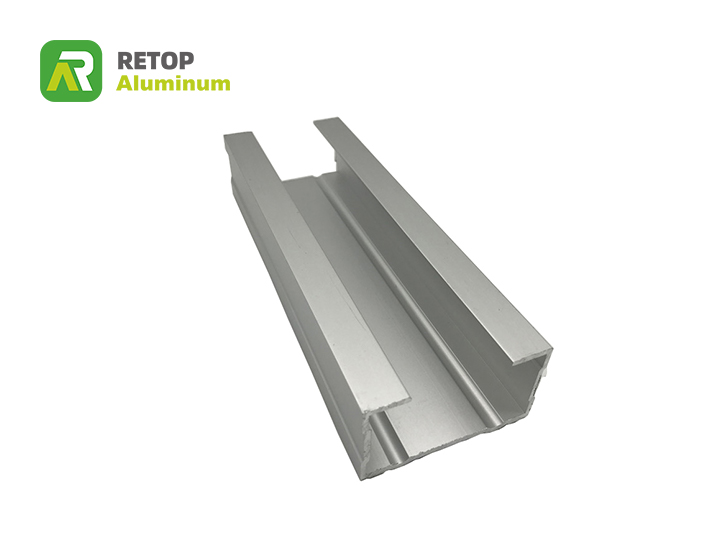

aluminium channel profiles
aluminium channel profiles

Common aluminium profile channel sizes

The dimensions of aluminium channel profiles include height, width, slot depth, slot width and wall thickness. Among them, the width and height are usually 20mm, 30mm and 40mm specifications. The slot depth and slot width are not fixed, usually according to different uses the size will be different. The thickness of the grooved aluminum profiles is usually 1.5mm, 2mm, 3mm and other options. Other special purpose slotted aluminum profiles will be customized according to your needs.

Specifications of aluminium u profile channel

BrandRetop aluminium
OriginalZhengzhou/Henan/China
Capacity5000ton/month
Thickness0.2-20mm or customized
Length3.0-7.2meter
Hardness>=8HW
ColorSilver,white,black,bronze,champagun,wood and any as requested
U channel aluminum profiles technical information

What are the advantages of aluminium channel profiles?

  1. Wide application. Channal aluminum profiles are widely used in real life, from mirrors to building decoration, elevators and so on.
  2. Long service time. Slotted aluminum profiles are made of high quality aluminum alloy material and surface treatment. This makes the grooved aluminum profile more durable, wear-resistant and not easy to deform.
  3. Environmental protection. Aluminum sections are recyclable, which helps save resources and protect the environment.
  4. Good thermal conductivity: Aluminum is a good thermal conductive material, which helps dissipate heat. This makes slotted aluminum profiles ideal for applications that require heat dissipation, such as electronic devices or machines.
  5. Decorative. Aluminum channel profiles can be surface treated to form aluminum profiles in a variety of colors. This can satisfy customers’ needs for decoration.

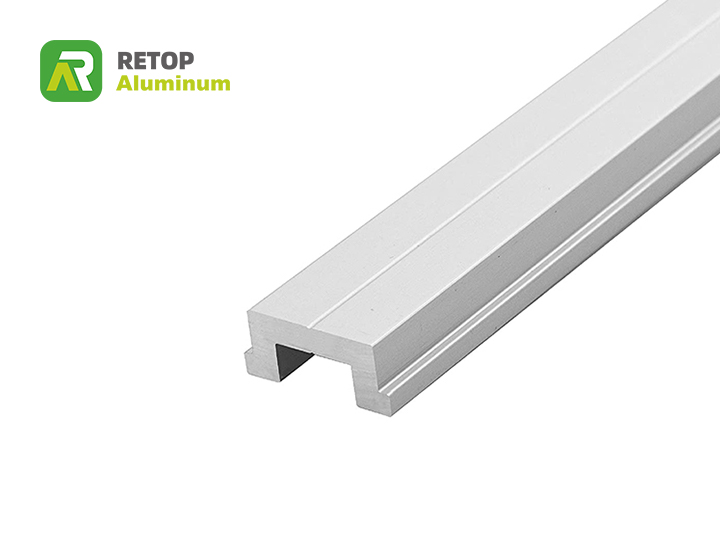

aluminium channel profiles
aluminium channel profiles

Machinability of aluminium profile channel

6063 aluminum extrusion is very suitable for anodizing or painting. In addition to this, 6063 slotted aluminum profiles are easy to weld and cut.

What aluminum alloys is suitable for extruded aluminum channel profiles?

The most common materials used for grooved aluminum profiles are 6063 aluminum alloy and 6061 aluminum profile. Of course, other aluminum alloys are also available. For example, 7075, 2024, 5083, 7050, 5086, 5456 and 6082. 6063 and 6061 are generally sufficient for most applications. Other types of aluminum alloys may be used if there are special needs.

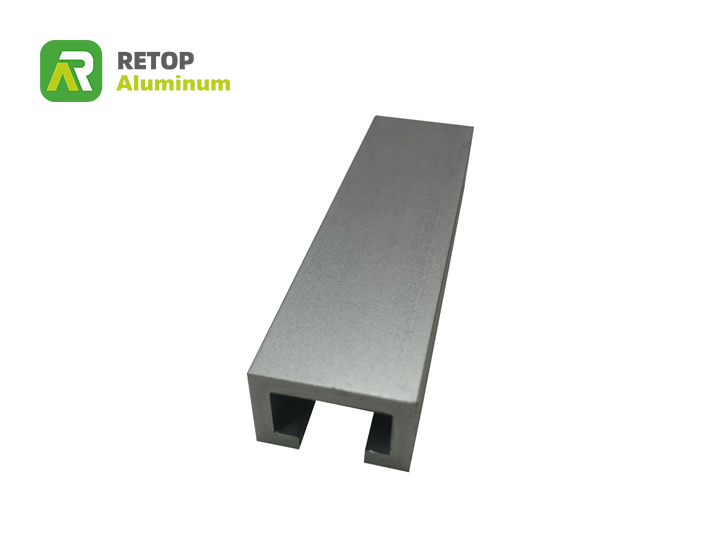

aluminium profile channel
aluminium profile channel
