Aluminium profile door frame clip 44 series for South Africa

Material: 6000 Series
Temperament: T3-T8
Length: 3.0-7.2m or customized
Thickness: 0.4mm-20mm or customized
Performance: Sound insulation, thermal insulation
Price: 2250usd/t; MOQ1t

Share:
Product Details

Quality aluminum profile door frame supplier-Retop

Aluminum profile door frame is popular in the market. It has different cross sections and colors provide customers with a variety of choices. Retop produces aluminium door frame profile with high quality and long service life.

1. Retop adopts high quality aluminum ingot raw material, high purity, more durable.

2. The excellent R&D team designs the aluminum profiles with reasonable cross-section structure, which is more sturdy.

3. Surface treatment enhances the performance of aluminum profiles for swing doors. The surface treatment we provide are: anodized, powder coated, electrophoresis, PVDF, wood grain transfer.

4. Several large tonnage production equipment to meet customer demand for large quantity aluminum profiles.

5. Delivery time is generally 20-25 days, the specific transportation time according to the specific logistics fluctuations.

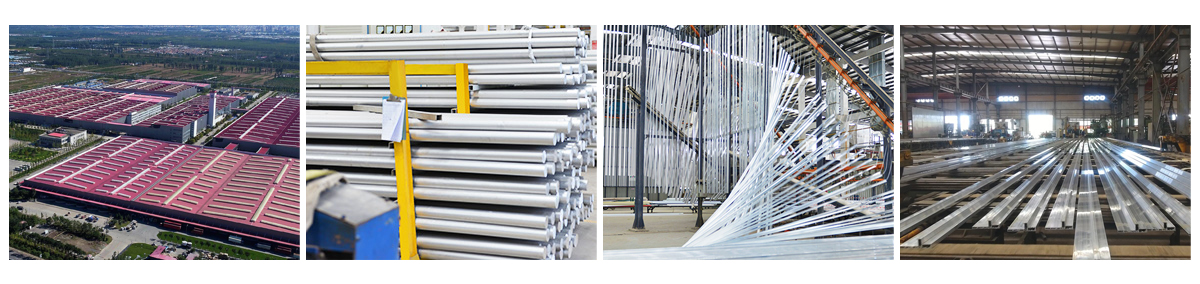

aluminum profile door frame from Retop
aluminum profile door frame from Retop

Detailed specifications of aluminium door frame profile

Product nameAluminium profile door frame
2 types Non-insulated profiles and heat-insulated profiles
Surface treatmentPolished, anodized, electrophoresis, powder coating, wood grain, PVDF, wire drawing
PerformanceSound insulation, thermal insulation
Material6000 Series
TemperamentT3-T8
ColorSilver, champagne, bronze, gold, black, white, gray, sand, anodized acid, alkali, wood grain, or customized
Length3.0-7.2m or customized
Thickness0.4mm-20mm or customized
Film thicknessStandard anodized: 7-23μ, powder coated: 60-80μ, electrophoretic film: 12-25μ.
ShapeSquare, angle, flat, hollow, oval, triangle, u profile, l profile, t profile, h profile or customized
SampleApprox. 3 working days for shipment
Deep machining CNC / precision cutting / punching / checking / tapping / drilling / milling / manufacturing
CertificationISO9001-2008 2. GB/T24001-2004/ISO 14001:2004/ GB/T28001-2001
Packaging DetailsPE film for each profile/shrink PE film for each bundle, slot packing, kraft paper/foam/carton box
Delivery time20-25 days
parameter about aluminium door frame profile

Aluminium door frame profile colors

Silver, champagne, bronze, gold, black, white, gray, sand grain, wood grain are the most common colors of aluminium door frame profile.

aluminium door frame profile with different colors
aluminium door frame profile with different colors

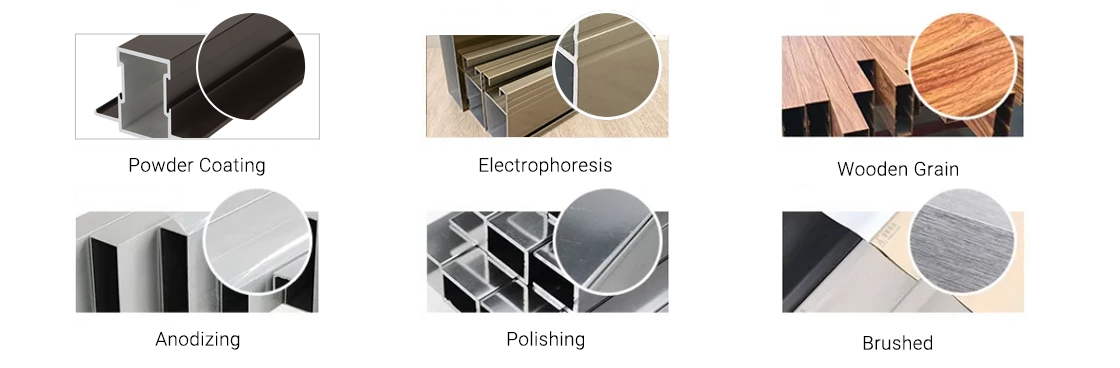

Surface treatment of aluminium glass door profile

Anodic oxidation, powder coating, electrophoretic, wood grain transfer printing, etc.

aluminium glass door profile with different finishings
aluminium glass door profile with different finishings

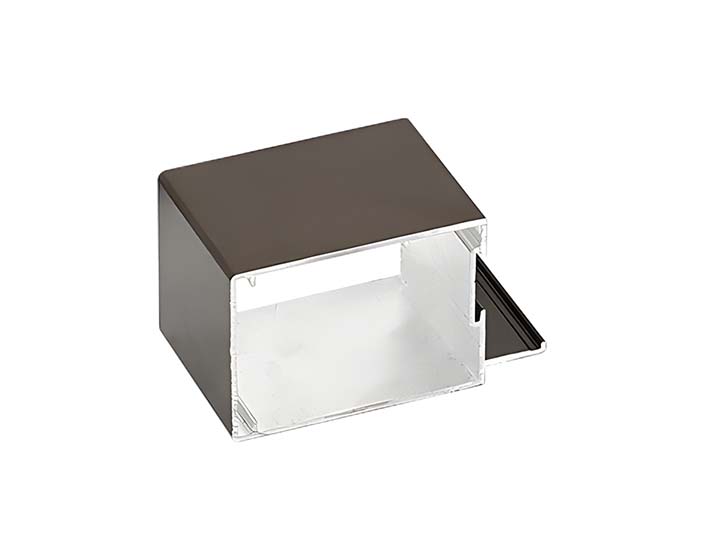

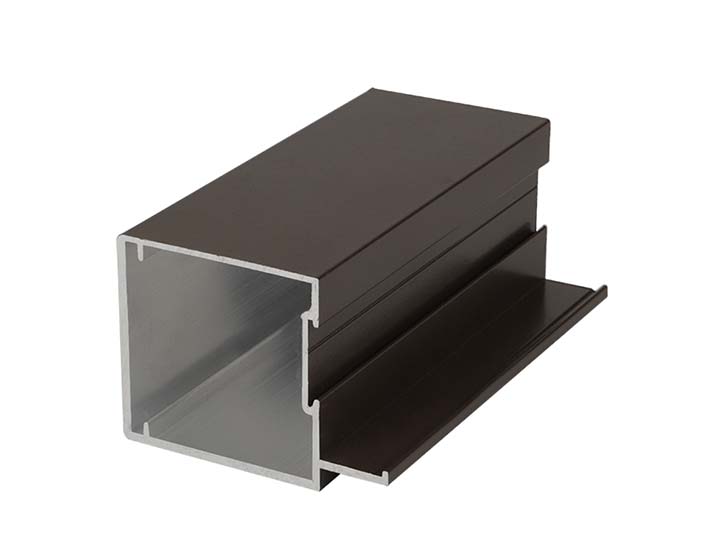

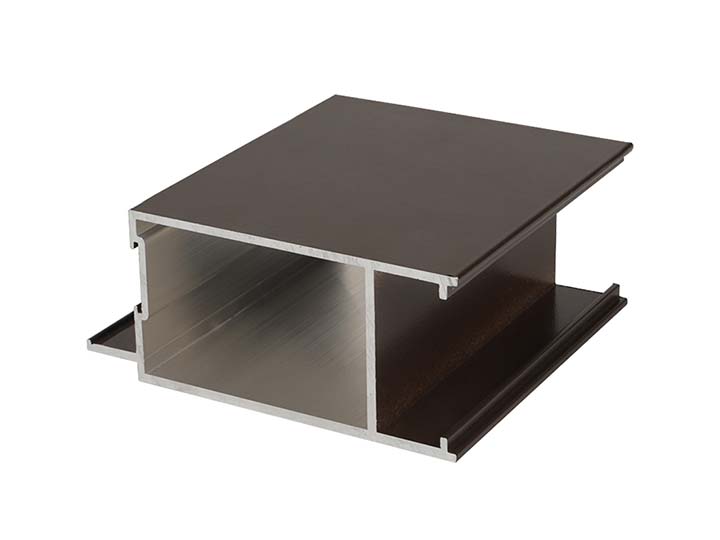

Aluminum hinge door profile supplied by Retop

Retop has supplied South Africa with a wide range of aluminium profile door frame. Below are the aluminum profiles we have produced for casement doors.

Uses of aluminium glass door profile

It can be used in bathroom, kitchen, balcony, office, bedroom, study, partition and other indoor spaces.

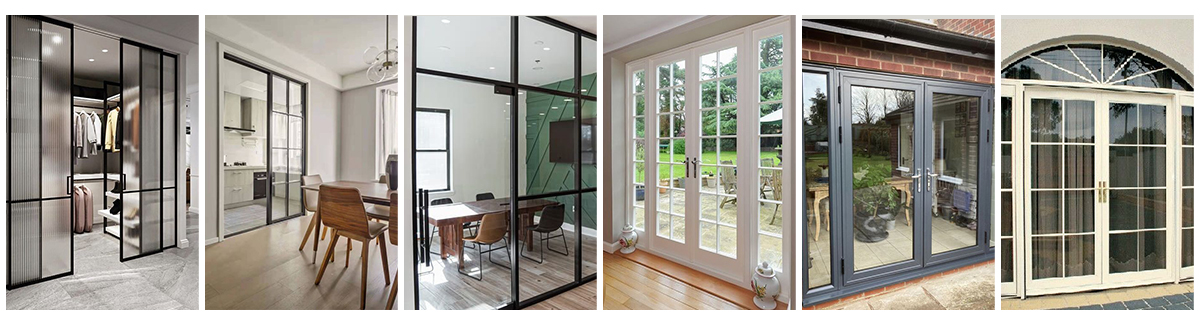

aluminium glass door profile application
aluminium glass door profile application

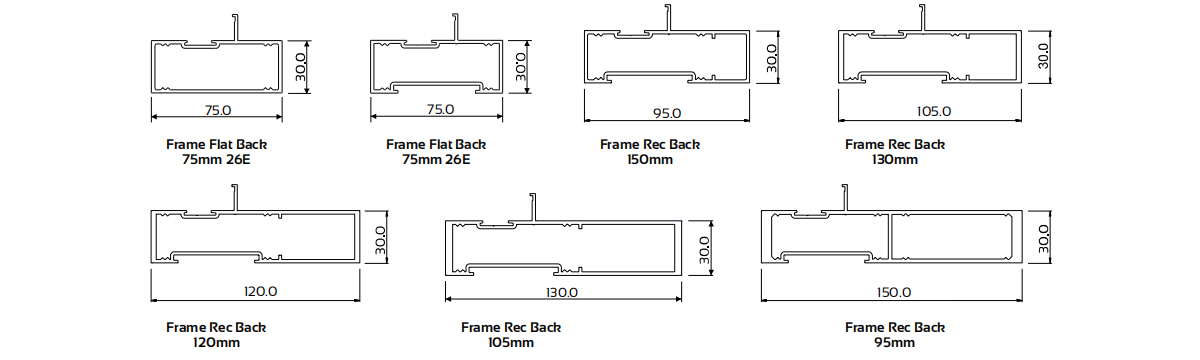

Clip 44 doors aluminium profile dimensions

Clip 44 aluminium profile door frame dimensions in South Africa vary depending on the specific application and design. Below are the standard specification casement window aluminum profile cross sections.

clip 44 doors aluminium profile dimensions
clip 44 doors aluminium profile dimensions

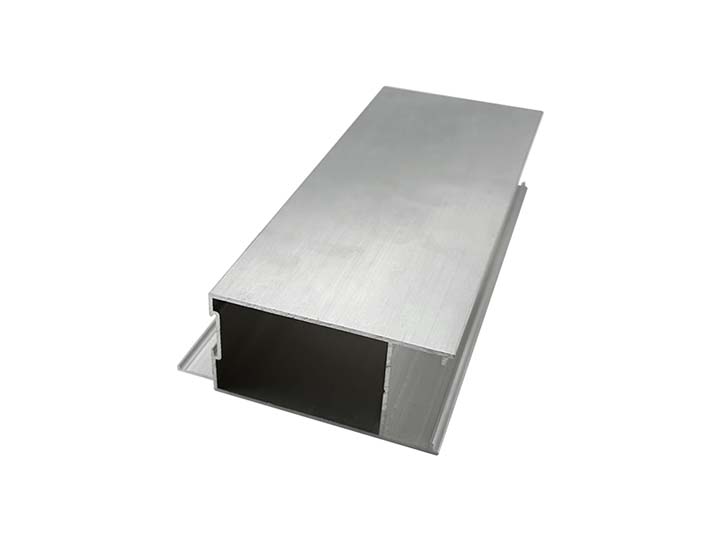

Introducing aluminium profile door frame

Aluminium profile door frame open in the same way as casement window profiles. Casement aluminum profiles are also generally combined with glass. The combination of casement aluminum profiles and glass can help customers divide the living space while opening up the view. The simple appearance is very suitable for the modern house building style. Therefore, it has gained the favor of many customers. We Retop can produce aluminum hinge door profile with different color appearance. Meanwhile, we can make suggestions according to your house style. We hope you can buy the suitable aluminum profiles for casement windows. You can contact us anytime if you have any questions!

Aluminium glass door profile advantages

1. Decorative. Aluminium door frame profile has a variety of colors and shapes can be combined. And the surface has high gloss, natural color, clear and delicate texture. The overall style is very modern, and it can embellish the interior very well.

2. Good performance. Aluminium profile door frame has excellent wind resistance, rainproof, heat insulation performance. Whether indoor or outdoor, the aluminum profile of the swing door is a good choice for the door frame.

3. Light weight. Aluminum profile density is 1/3 of steel, each square meter window with aluminum profile is about 5KG. Steel to 10-20KG, plastic window frames weigh more than 10KG. Light weight is also conducive to the installation and removal of aluminum profiles for casement doors.

4. Durable. Aluminum alloy casement door has a very good ability to adapt to the environment. Aluminum alloy material is not afraid of moisture, not afraid of sunlight, not easy to deform. Durable and stable state, won the favor of many customers.

5. Strong corrosion resistance. Aluminum alloy oxide layer does not fade, does not fall off, do not need to paint, easy to maintain, cost savings.

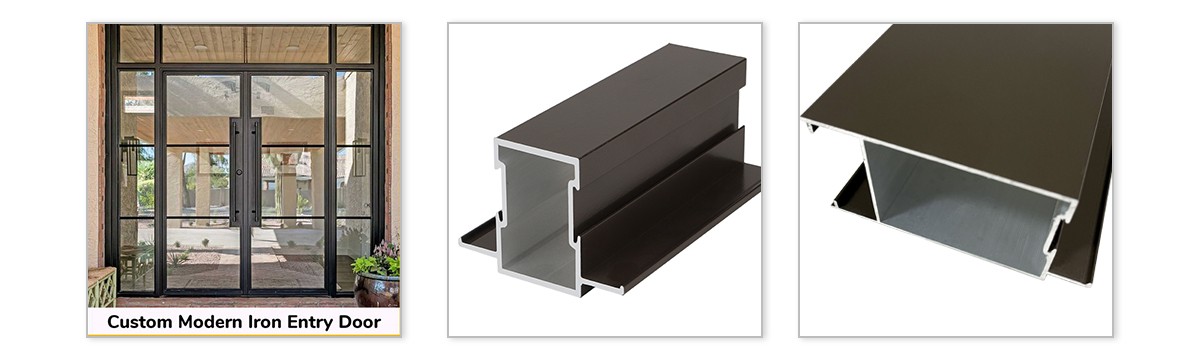

Aluminium glass door profile
Aluminium glass door profile

How thick is aluminium profile door frame?

The thickness of aluminium profile door frame will vary according to the specific needs of customers. Generally speaking, the thickness of South Africa 44 series swing door is: 1.2mm, 1.5mm, 2mm.

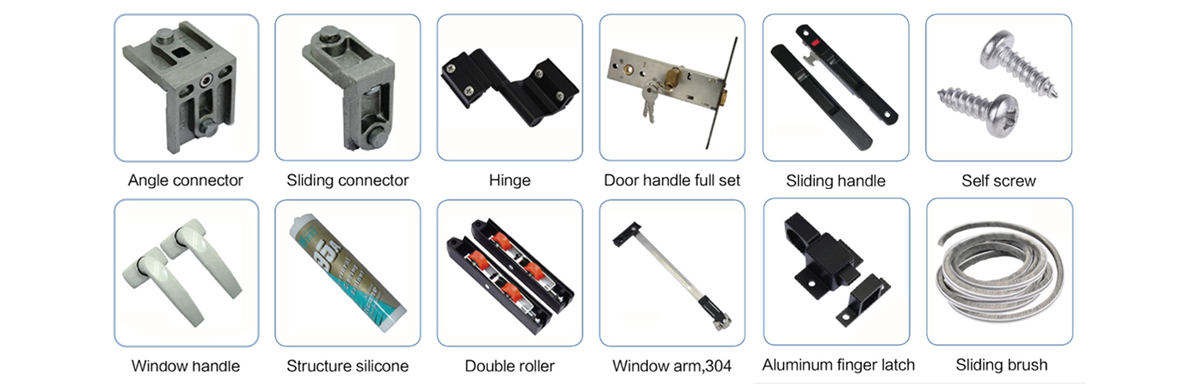

Fittings of the aluminium profile frame for door

The fittings of aluminium profile frame for door are angle connector, hinge, door handle full set, structure silicone, self screw, aluminum finger latch, sealing strip, etc. We will provide the matching aluminum profile according to the customer’s specific needs. Retop will provide the matching aluminium profile door frame accessories according to customer’s specific needs.

aluminium profile frame for door spare parts
aluminium profile frame for door spare parts

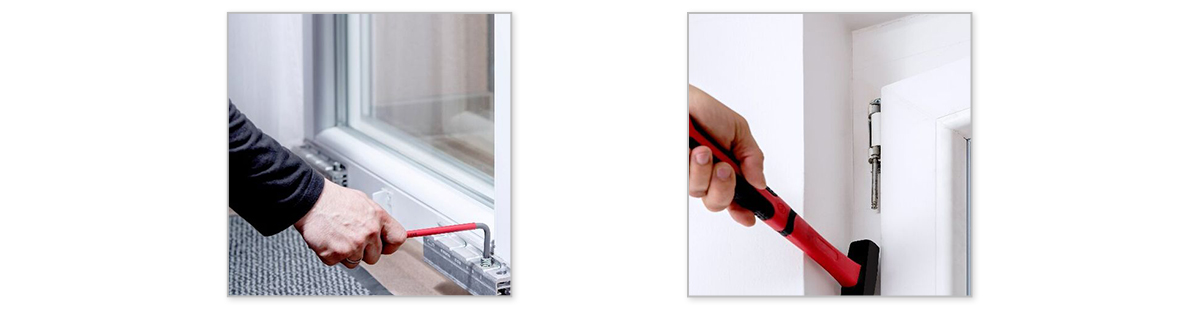

How to install the aluminum frames for glass doors?

The following is the general process of installing the aluminum frames for glass doors, the specific installation method will vary according to the specific needs of customers.

1. Preparation: Prepare all the required tools and accessories.

2. Check the aluminum profile: Before installation, check the aluminium profile for glass door for any damage or deformation.

3. Installation of hinges: Determine the installation position of the hinges according to the size and position of the door and door frame. Use screwdriver to fix the hinge on the door frame.

4. Install the door lock and handle: according to the instructions of the door lock and handle, install it in the appropriate position.

5. Install the door leaf: Insert the door leaf into the hinge and make sure the door leaf fits tightly with the door frame.

6. Install bumper and sealing strips: Install bumper strips at the contact point between the door leaf and the door frame to reduce the impact force when the door is closed. Installation of sealing strip in the gap between the door leaf and the door frame is to enhance the sealing of the door.

7. Inspection and adjustment: After the installation is completed, check whether the door switch is smooth, whether there is any strange sound or jamming phenomenon.

aluminum frames for glass doors installation
aluminum frames for glass doors installation

How to maintain the doors aluminium profile?

Regular maintenance and care of aluminum profiles for casement doors is conducive to extending the service life of doors aluminium profile. Here are a few maintenance suggestions provided by Retop:

1. Regular cleaning: use a soft cloth with a special detergent to clean the surface of the aluminum profile of the casement door. At the same time, regularly clean the dust and debris between the door frame and the glass.

2. Check the sealing strip: regularly check whether the sealing strip of the aluminium profile door frame is intact, if found aging, falling off or damaged, it should be replaced in time.

3. Keep hardware fittings intact: often check whether the hinges, hinges, door locks and other hardware fittings of the swing door are intact and normal. In the movable parts of the appropriate amount of lubricant, can reduce friction, to maintain the use of the door flexible.

4. Avoid heavy impact: avoid heavy or blunt objects impacting the aluminium profile door frame, so as not to damage the door aluminum profile frame and glass.

5. Maintain ventilation and air permeability: open the window appropriately to maintain indoor air circulation, to avoid moisture and mold growth in the casement door.

Why choose Retop’s 44 series doors aluminium profile?

1. High product quality. Whether it is aluminum profile raw materials or accessories. We all use high-quality materials that meet high international standards.

2. Various surface treatments are available. Facing the surface treatment, customers have a variety of choices. Powder coating and anodic oxidation are the two surface treatments that customers choose the most.

3. Experienced in production. Until now we have supplied 44 series of aluminium profile door frame to many South African customers. So, we can clearly understand your needs and produce casement window aluminum profiles that meet the requirements.

4. Good feedback from customers. South African customers who buy aluminium door frame profile from us say that our aluminum profile products are very delicate and durable.

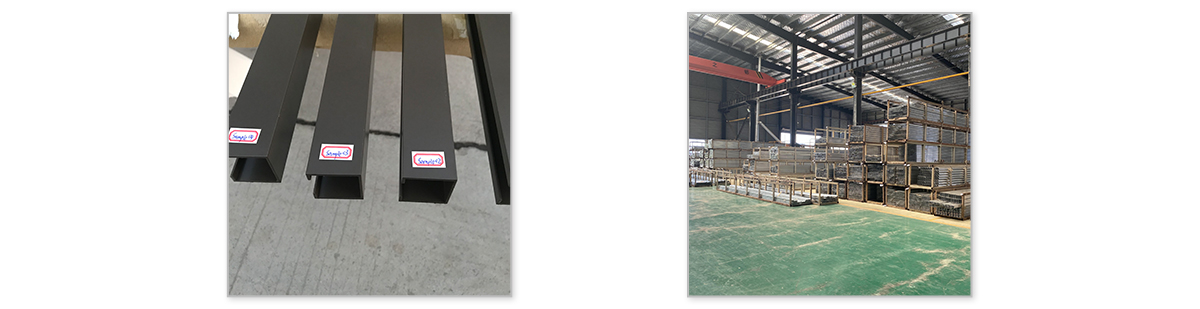

Provide high quality aluminium profile door frame

Under the current competitive market environment in the construction industry, it is especially important to choose a high-quality aluminum door and window profile manufacturer. Retop has always been committed to producing aluminum door profile products that are not only aesthetically pleasing, but also sturdy and durable. In order to ensure that every door and window has excellent corrosion resistance and stability, we strictly choose high-purity aluminum as raw material.

At the same time, through advanced precision manufacturing processes, we ensure that our products are lightweight and at the same time enhance their strength and stability. This means that our aluminum window and door profiles can show excellent performance whether facing the wind pressure test of high-rise buildings or coping with the temperature difference impact of climate change. In addition to this product we also produce aluminum profiles for windows, aluminum profiles for curtain walls, aluminum profiles for office partition, and more. All of our aluminum profiles are manufactured to high standards. You are welcome to come and consult with us at any time!

high quality aluminium profile door frame
high quality aluminium profile door frame

FAQs

1. Are you a trading company or a manufacturer?
We are a manufacturer.

2. What are your prices?
The price depends on the specific requirements of the buyer.
1) Construction drawings/window schedule showing how the window opens, size, quantity
2) Aluminum color
3) Glass type

3. How long does it take to prepare samples of your casement aluminum profiles?
1) If the samples are in stock, it only takes 7-10 days to complete the samples.
2) For customized aluminum tubes, it will take longer time, usually 30-35 days to complete.

4. How about the after-sales service of aluminum profiles for swing doors?
We Retop will always help you to solve the problems about the aluminum profile. You can contact us if you have any problems in using it.

5. How about the transportation package?
Kraft paper, PE film, export wooden case, or customized

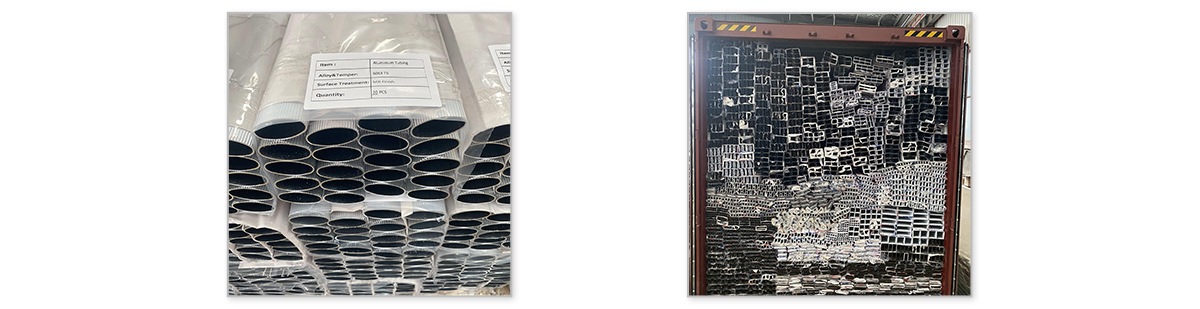

packing and shipping of aluminium profile door frame
packing and shipping of aluminium profile door frame
